Ribbon Controller USB-connector Project Part 1

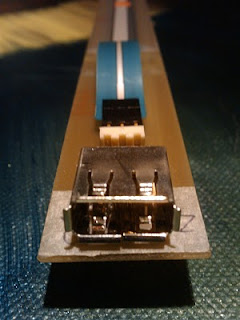

After a few weeks of randomly disturbed signals, the USB-connector of my A-198 Ribbon Controller finally broke a pin... or two.

It's not the first time this happened, last time was a little over 2 years ago.
It is just one of the very few weak spots of the whole A-100 system, it might be cost-related, but i'm not sure about that.

Back then, Doepfer was so kind to send me a USB connector for free, and i know that if i'd mail them i can get one again, but i'm not sure this solution will work very long, as i use this Controller a lot lately.
The weight of the USB-connector (and cable) is just too big, and the way i hold it (guitar-style) is probably not the best way to hold it (?)





My plan is to by-pass the USB-connector by wiring the cable in another way. I'm still not sure how exactly, but i'll see. And you will.
